6 Circuits Through Hole Slip Ring With 12.7mm Hole Dia And 380VAC Voltage

Name: 6 Circuits Through Hole Slip Ring With 127mm Hole Dia And 380VAC Voltage
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPT012-0610

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

ID : 12.7mm

Number of circuits : 6

Current rating : 10A

Color : black

Housing : Aluminum alloy

Stator : 300mm

Rotor : 300mm

Contact Now

LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.

Electrical slip ring Specification

Circuits	6
Current Rating	10A
Voltage	240 V AC/DC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	≥500MΩ@500VDC
Hole Diameter	12.7mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Wire Length	Stator:300mm; Rotor:300mm
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

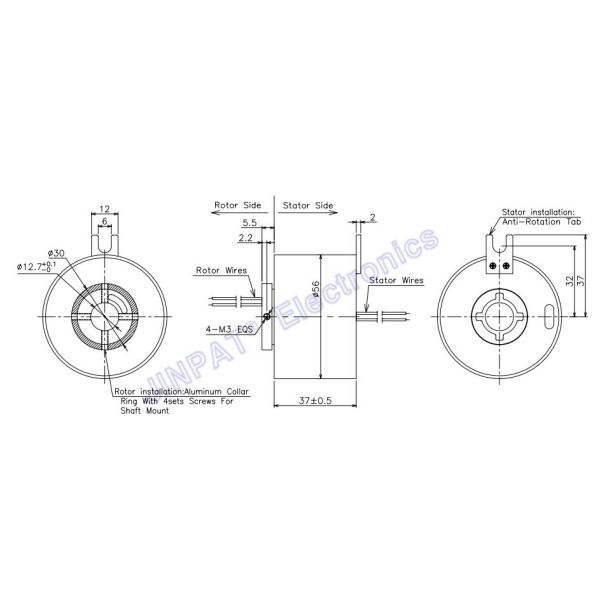

Outline Drawing

Electrical slip ring Product Display

6 Circuits Through Hole Slip Ring With 12.7mm Hole Dia And 380VAC Voltage
