Gold - Gold Contact Slip Ring of 56 Circuits With a Flange
Description
Model LPC-56A is a 56-circuit, low-cost, off-the-shelf, and "one-size-fits-all" slip ring to most low-voltage applications, especially turntable.It provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12, 18, 24, 36, 56 circuit models.
The LPC-56A capsule slip ring Using a 90° V-groove ring design for each ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The gold-gold technology used between rings and brushes, minimize noise and interferences between the rings, allowing high data rate.This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
| Specifications |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 56 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |

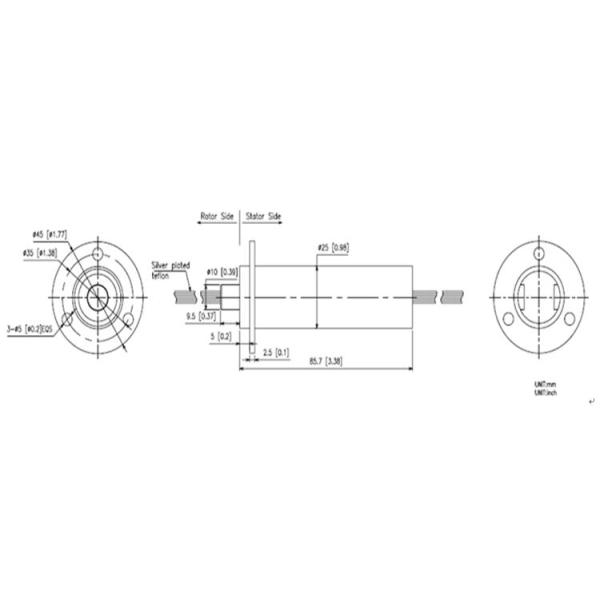

Outside Drawing

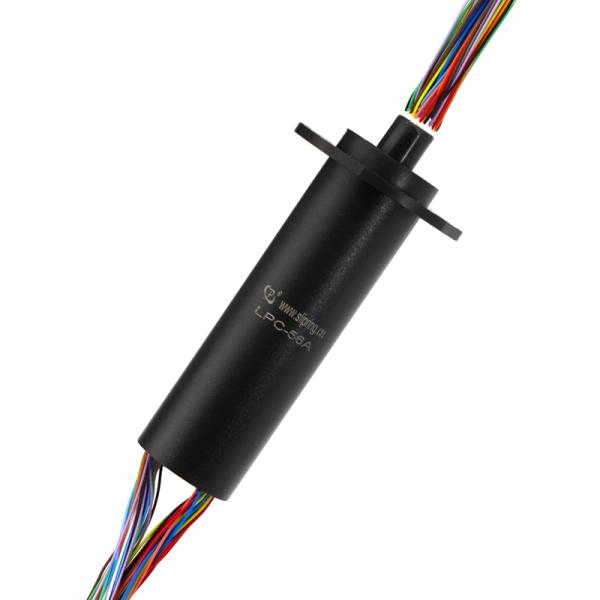

Product Display
The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.
Application Picture (Sorter Slip Ring )
